The purpose of the mobile harness is to connect the different elements (touch pad, starting block and pushbuttons) of a swimming lane to the timing system (Quantum).

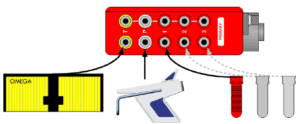

The mobile harness is made with a case which shows the number of the corresponding swimming lane and it is available from lanes 0 to 9. The side with the banana plugs is used for the connection of the contacts (touch pad, starting block and pushbuttons). The banana plugs connected by a white line are the common feature; they are electrically connected inside the harness.
3.1 Dimensions and weight
Dimension of mobile harness: Hx105/Wx105/Dx36 + 3m cable
Case weight:
Primary mobile harness: 0.760 kg
Primary & Secondary mobile harness: 0.865 kg
3.2 Maintenance
After each use, clean the harness using a wet cloth (without additives). Fill up the banana plugs with
RHODORSIL B431 paste (RHODIA SILICON) n° 9038.7047
3.3 Storage
The mobile harness must be kept in a clean and dry place.
The storage temperature is -10°C to +60°C whereas t he working temperature is 0°C to +45°C.
